制作今日天气界面

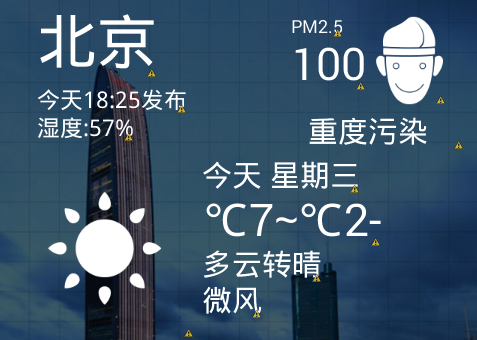

本次任务中,界面中的数据使用静态文本数据,无需连接网络获取数据。效果如下:
资源文件
实践内容及步骤

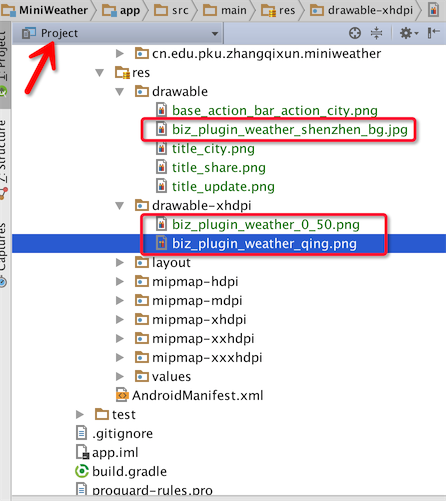

1.将本次实验所需的资源文件放置到相应的资源目录中
2.设计界面的主体框架
根据前面的分析,这里采用嵌套布局的方式,放置一个线性布局,采用垂直方式分布,分别放置今日天气、7日天气信息以及广告信息。并指定背景图片。
3.设计今日天气界面的框架

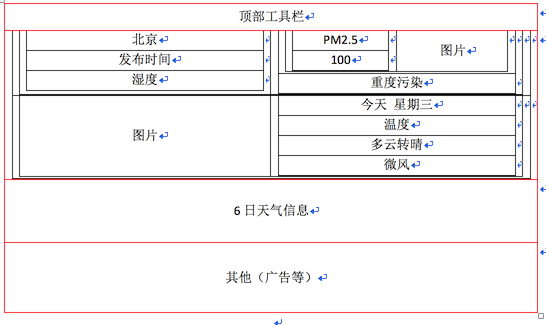

针对今日天气信息中主要包含的内容进行分析可知:可以将城市名称、发布时间、湿度信息等独立放置,然后将PM2.5的信息以及下方的今日天气信息块分别放到两个布局中,见下图所示。

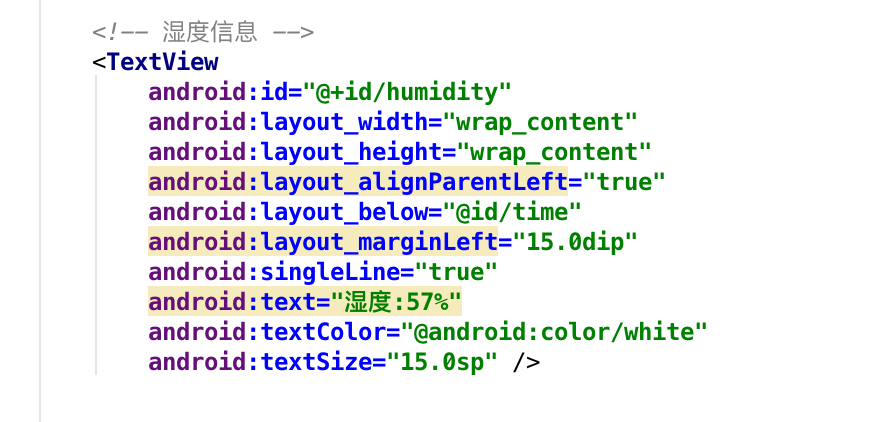

城市名称、发布时间、湿度信息的配置内容,如下图所示:
4.PM2.5信息块布局

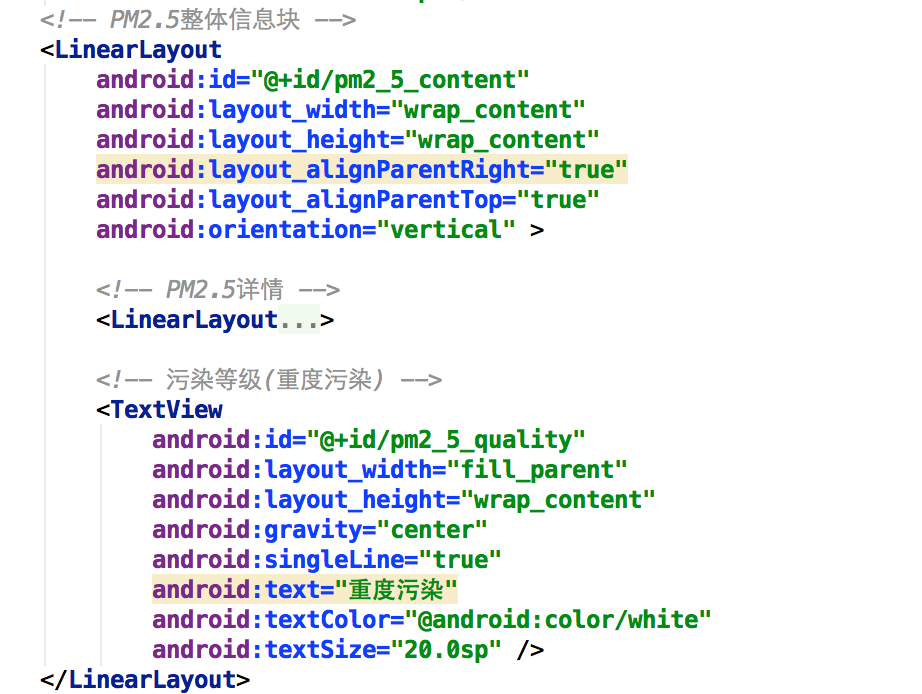

PM2.5信息块的布局方式如下所示。PM2.5详情单独放到了一个线性布局中。

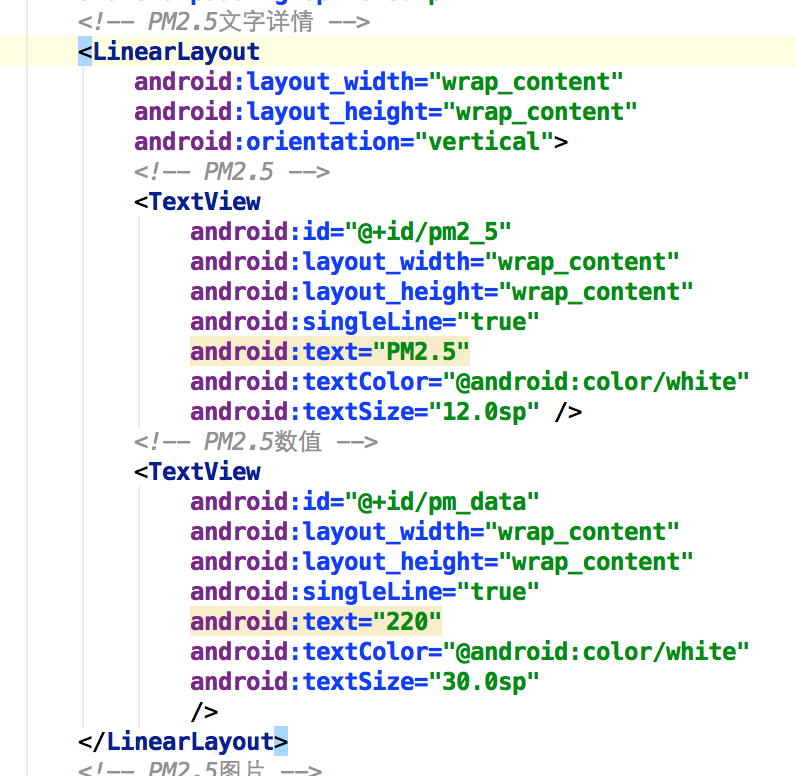

PM2.5详情如下图所示: PM2.5文字详情如下:
5.今日天气信息块布局

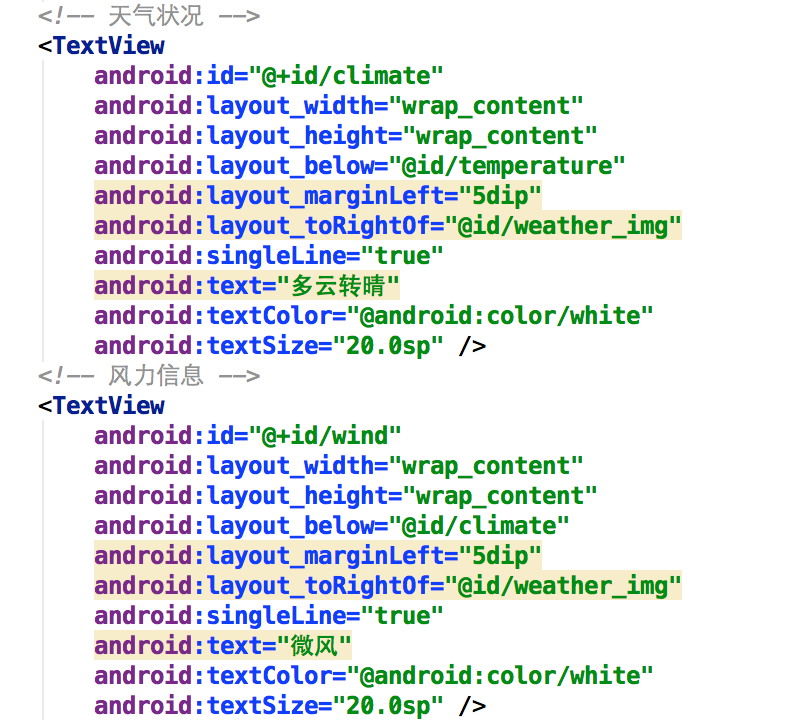

今日天气信息中包括天气状况图例、今日星期、温度情况、天气情况、风力信息等,这里放在了一个相对布局中。 天气状况图例、今日星期、温度情况、天气情况、风力信息的具体设置如下:
6.运行程序

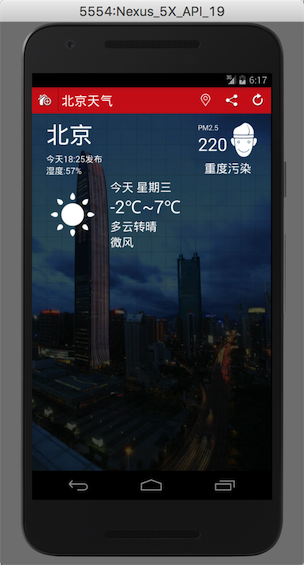

界面效果如下图所示。
帮助信息
1.去掉系统自带的ActionBar

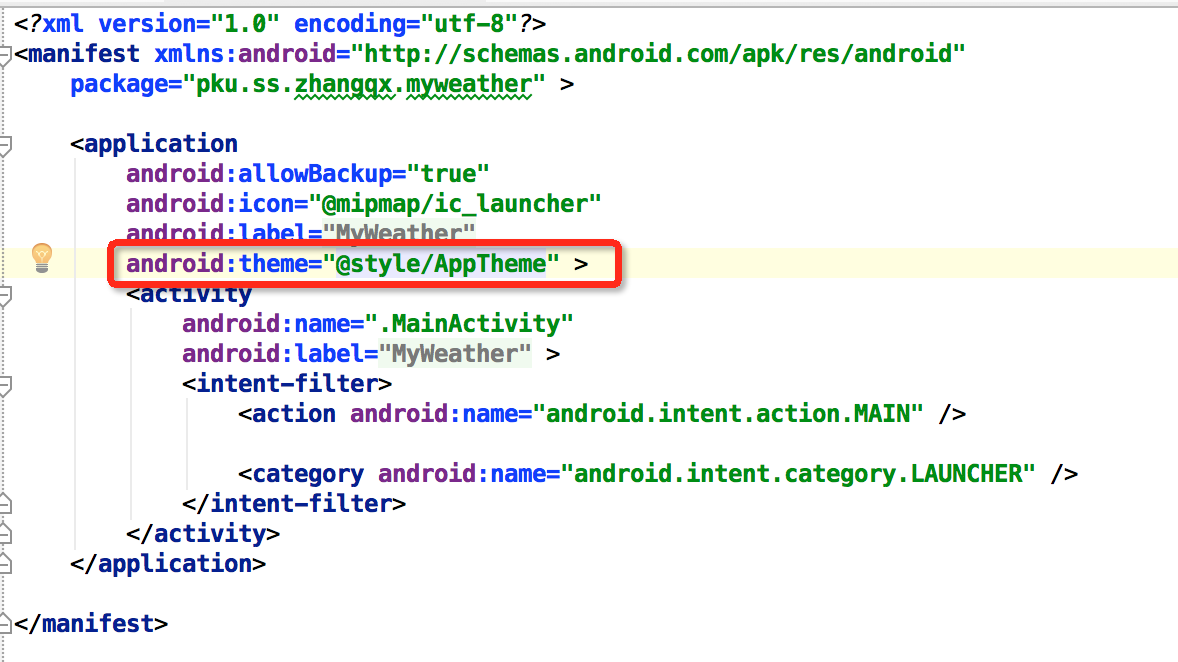

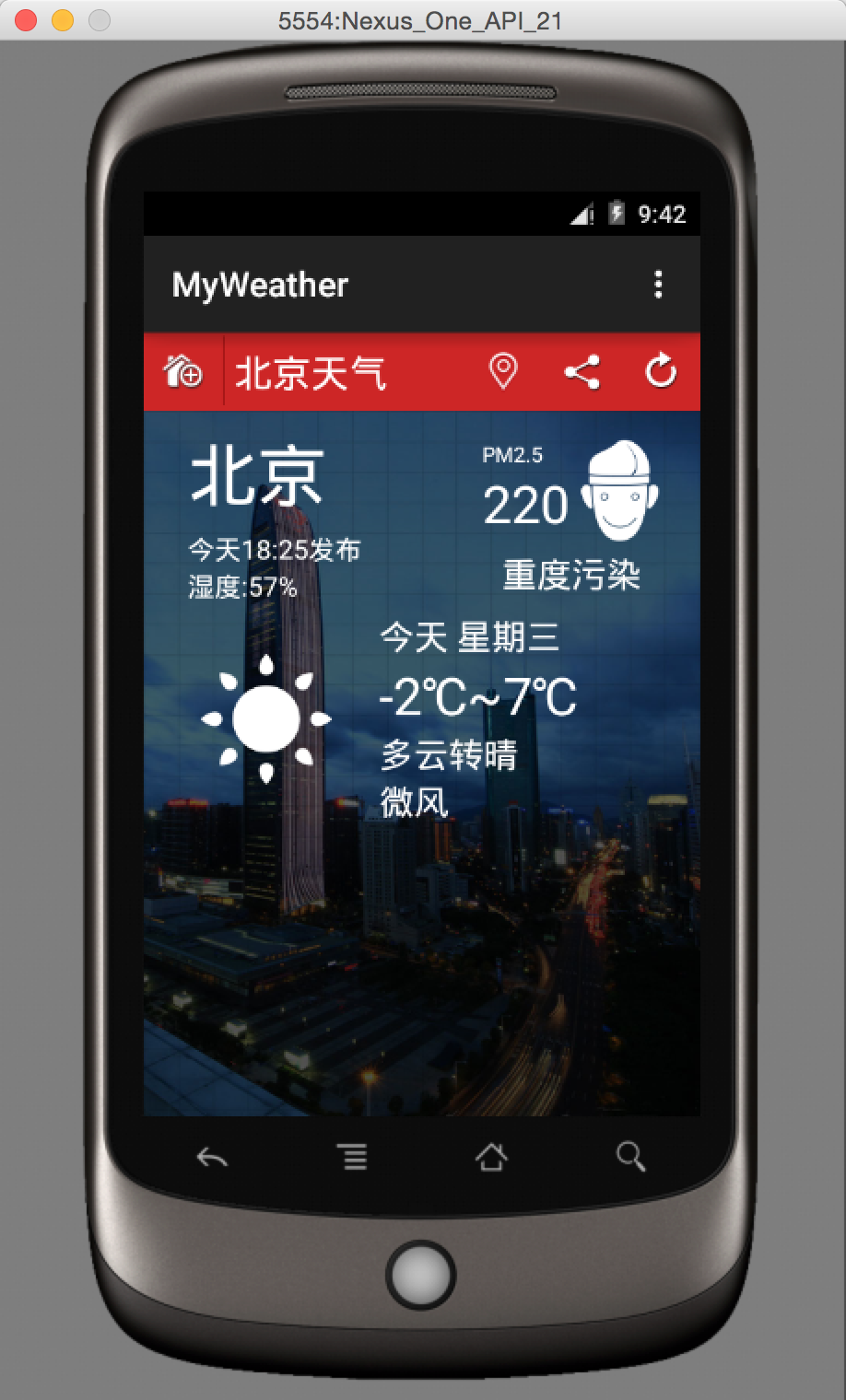

如果应用中包含ActionBar,如下图所示,可以使用以下方法去掉。
附录:程序代码(weather_info.xml)
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent">
<RelativeLayout
android:id="@+id/title"
android:layout_width="fill_parent"
android:layout_height="45.0dip"
android:background="#ffcd2626"
android:gravity="center_vertical">
<ImageView
android:id="@+id/title_city_manager"
android:layout_width="45.0dip"
android:layout_height="45.0dip"
android:src="@drawable/title_city" />
<ImageView
android:id="@+id/city_seperator"
android:layout_width="1.0dip"
android:layout_height="40dip"
android:layout_marginTop="2.0dip"
android:layout_toRightOf="@id/title_city_manager"
android:background="#A71717" />
<TextView
android:id="@+id/title_city_name"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_toRightOf="@id/city_seperator"
android:gravity="center_vertical"
android:paddingLeft="5dip"
android:text="北京天气"
android:textColor="#ffffffff"
android:textSize="22.0sp" />
<ImageView
android:id="@+id/title_update_btn"
android:layout_width="45.0dip"
android:layout_height="45.0dip"
android:layout_alignParentRight="true"
android:layout_gravity="center"
android:src="@drawable/title_update"
android:visibility="visible" />
<ImageView
android:id="@+id/title_share"
android:layout_width="45.0dip"
android:layout_height="45.0dip"
android:layout_toLeftOf="@id/title_update_btn"
android:src="@drawable/title_share" />
<ImageView
android:id="@+id/title_location"
android:layout_width="45.0dip"
android:layout_height="45.0dip"
android:layout_toLeftOf="@id/title_share"
android:src="@drawable/base_action_bar_action_city" />
</RelativeLayout>
<LinearLayout
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layout_below="@id/title"
android:background="@drawable/biz_plugin_weather_shenzhen_bg"
android:orientation="vertical" >
<!-- 今日天气信息 -->
<RelativeLayout
android:id="@+id/weather_today"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:padding="10.0dip" >
<!-- 城市名称 -->
<TextView
android:id="@+id/city"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_marginLeft="15.0dip"
android:singleLine="true"
android:text="北京"
android:textColor="@android:color/white"
android:textSize="40.0sp" />
<!-- 发布时间 -->
<TextView
android:id="@+id/time"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@id/city"
android:layout_marginLeft="15.0dip"
android:layout_marginTop="5dip"
android:singleLine="true"
android:text="今天18:25发布"
android:textColor="@android:color/white"
android:textSize="15.0sp" />
<!-- 湿度信息 -->
<TextView
android:id="@+id/humidity"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@id/time"
android:layout_marginLeft="15.0dip"
android:singleLine="true"
android:text="湿度:57%"
android:textColor="@android:color/white"
android:textSize="15.0sp" />
<!-- PM2.5整体信息块 -->
<LinearLayout
android:id="@+id/pm2_5_content"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentRight="true"
android:layout_alignParentTop="true"
android:orientation="vertical" >
<!-- PM2.5详情 -->
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="horizontal"
android:paddingBottom="6.0dip"
android:paddingLeft="12.0dip"
android:paddingRight="12.0dip"
android:paddingTop="6.0dip" >
<!-- PM2.5文字详情 -->
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="vertical">
<!-- PM2.5 -->
<TextView
android:id="@+id/pm2_5"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:singleLine="true"
android:text="PM2.5"
android:textColor="@android:color/white"
android:textSize="12.0sp" />
<!-- PM2.5数值 -->
<TextView
android:id="@+id/pm_data"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:singleLine="true"
android:text="220"
android:textColor="@android:color/white"
android:textSize="30.0sp"
/>
</LinearLayout>
<!-- PM2.5图片 -->
<ImageView
android:id="@+id/pm2_5_img"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginLeft="5.0dip"
android:src="@drawable/biz_plugin_weather_0_50" />
</LinearLayout>
<!-- 污染等级(重度污染) -->
<TextView
android:id="@+id/pm2_5_quality"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:gravity="center"
android:singleLine="true"
android:text="重度污染"
android:textColor="@android:color/white"
android:textSize="20.0sp" />
</LinearLayout>
<!-- 今日天气信息块 -->
<RelativeLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_below="@id/humidity"
android:layout_centerInParent="true"
android:layout_marginTop="5.0dip" >
<!-- 天气情况图片示例 -->
<ImageView
android:id="@+id/weather_img"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:src="@drawable/biz_plugin_weather_qing" />
<!-- 今日星期 -->
<TextView
android:id="@+id/week_today"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentTop="true"
android:layout_marginLeft="5dip"
android:layout_toRightOf="@id/weather_img"
android:singleLine="true"
android:text="今天 星期三"
android:textColor="@android:color/white"
android:textSize="20sp" />
<!-- 温度范围 -->
<TextView
android:id="@+id/temperature"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_below="@id/week_today"
android:layout_marginLeft="5dip"
android:layout_toRightOf="@id/weather_img"
android:singleLine="true"
android:text="-2℃~7℃"
android:textColor="@android:color/white"
android:textSize="30.0sp" />
<!-- 天气状况 -->
<TextView
android:id="@+id/climate"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_below="@id/temperature"
android:layout_marginLeft="5dip"
android:layout_toRightOf="@id/weather_img"
android:singleLine="true"
android:text="多云转晴"
android:textColor="@android:color/white"
android:textSize="20.0sp" />
<!-- 风力信息 -->
<TextView
android:id="@+id/wind"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_below="@id/climate"
android:layout_marginLeft="5dip"
android:layout_toRightOf="@id/weather_img"
android:singleLine="true"
android:text="微风"
android:textColor="@android:color/white"
android:textSize="20.0sp" />
</RelativeLayout>
</RelativeLayout>
<!-- 六日天气信息 -->
<!-- 广告等信息 -->
</LinearLayout>
</RelativeLayout>
附加任务
- 请自行增加当前温度。
